Unity™ 4G Residential Femtocell

Unity? 4G Residential Femtocell Specifications is an integrated base station based on LTE technology, which supports access to the backbone network through wired backhaul, provides LTE access for terminals, completes voice and data service transmission, and realizes indoor Wireless broadband coverage. Unity? 4G Residential Femtocell are usually connected to the LTE core network through a non-secure domain; the network management system centrally manages the equipment; the security gateway implements data packet encryption, and the connection between the base station equipment and the core network must pass through the security gateway through a The ingress gateway (GW) completes the relay between the base station equipment and the MME/SGW, completes the convergence of the signaling plane, and reduces the impact on the core network. Figure 1-1 shows the network structure of the 4G Residential Femtocell accessing the LTE network.
Unity™ 4G Residential Femtocell
Description Features Networking Specifications Related Products

Unity™ 4G Residential Femtocell Specifications is an integrated base station based on LTE technology, which supports access to the backbone network through wired backhaul, provides LTE access for terminals, completes voice and data service transmission, and realizes indoor Wireless broadband coverage.

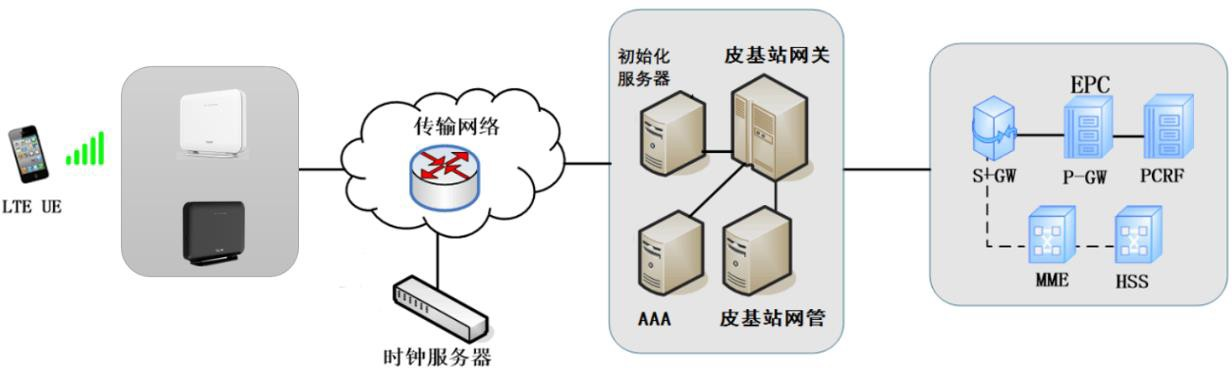

Unity™ 4G Residential Femtocell are usually connected to the LTE core network through a non-secure domain; the network management system centrally manages the equipment; the security gateway implements data packet encryption, and the connection between the base station equipment and the core network must pass through the security gateway through a The ingress gateway (GW) completes the relay between the base station equipment and the MME/SGW, completes the convergence of the signaling plane, and reduces the impact on the core network. Figure 1-1 shows the network structure of the 4G Residential Femtocell accessing the LTE network.

  • Highly integrated baseband and radio frequency design.
  • Based on 3GPP LTE FDD technology, providing high-speed data services.
  • Support 5MHz, 10MHz, 15MHz, 20MHz working bandwidth.
  • Convenient networking, plug and play, flexible deployment.
  • On-demand integration can achieve accurate coverage and quickly increase the capacity of the existing network.
  • Built-in DHCP Server, DNS Client and NAT functions, providing powerful high-speed routing capabilities.
  • Rich security services provide immediate protection against potential security risks and illegal intrusions.
  • Web-based management is convenient and intuitive.
  • With perfect network management function, system management, monitoring and maintenance can be completed in the network management system.

                            Hardware Specification

Item

Descriptions

Duplexing

LTE FDD

Working Frequency

B3

Working Bandwidth

5MHz / 10MHz / 15MHz / 20MHz

Transmit Power

2 x 17dBm

Synchronously

Support IEEE 1588 V2, IEEE 1588 ACR and air synchronization

Backhaul

RJ-45 Ethernet interface (1GE)

MIMO

2 x 2

Dimension

135mm(H)*175mm(W)*25mm(D), not including bracket

Installation Method

Desktop placement

Power Consumption

< 12W

Power Supply

220V AC to 12V DC power adapter

Weight

< 0.5Kg

Equipment Capacity

< 0.7L


                            Software Specifications


Items

Descriptions

Standard

3GPP Release 12

Peak Rate

(20 MHz Bandwidth)

Downlink: 150Mbps

Uplink: 75Mbps

System Capacity

Support 32 concurrent users and 64 RRC connected users

Scheduling

3GPP standard QCI

Modulation

Uplink: BPSK, QPSK, 16QAM, 64QAM

Downlink: BPSK, QPSK, 16QAM, 64QAM

Voice Solution

VoLTE

RAN Sharing

Support simultaneous connection to the core network of China Telecom and China Unicom, and broadcasting of China Telecom and China Unicom at the same time PLMN

SON

Support auto configuration, ANR and PCI conflict detection

Network Management Interface

Support TR069 interface protocol

MTBF

≥ 150000 hours

MTTR

≤ 1 hour

Operation and Maintenance

Support remote/local maintenance, based on SSH protocol

Support remote maintenance

Support online status management

Support performance statistics

Support fault management

Support configuration management

Support local or remote software upgrade and loading

support Log

Supports connectivity diagnostics

Supports self-starting and self-configuration deployment

Support alarm reporting
